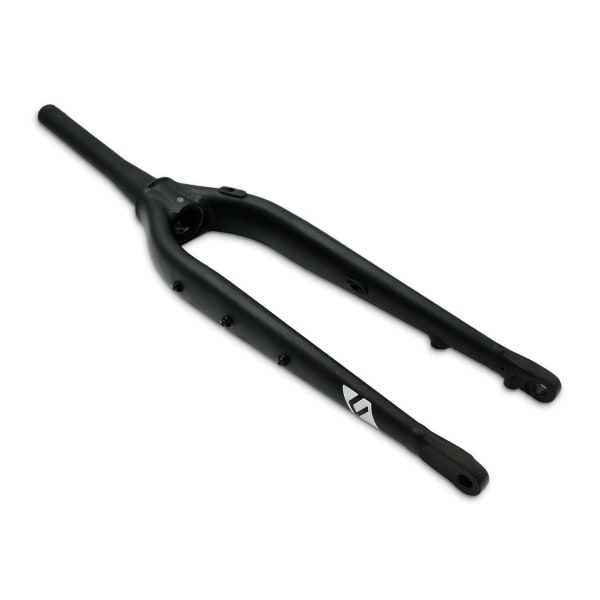

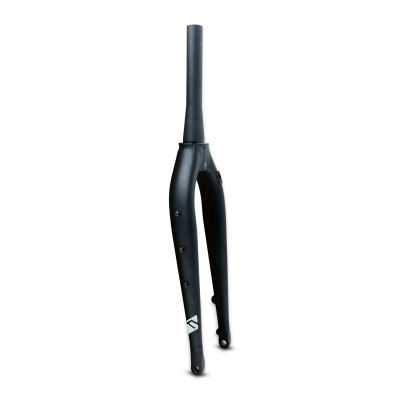

FORK ALLOY ADVENTURE 700C TAPERED ALLOY STEEER

Well, this is our first ALLOY ADVENTURE FORK and we hope you guys like it!!!

It’s lighter than our Cromo model by a fair bit and also offers a much lower Axle-to-Crown to suit Non-Suspension Corrected Geo frames – which basically means alot of today’s Gravel / Bikepacking frames!

Still offering heaps of tire clearance ( 80mm inner width ) the choice of wider 700c or 27.5″ ( 2.4 easy! ) is all yours!

We’ve kept these stealthy with a Black Anodized + Sandblast finish. All graphics are laser-etched too.

• Lightweight 6000 Series Alloy
• Tapered Steerer: 1.5 to 1.1/8”, 200mm Length
• 100mm Spacing
• 12mm Thru-Axle M1.5 Thread ( 124mm length required )
• 3 Bolt Mounts per leg – for adding accessories for bikepacking/touring
• Axle to Crown: 410mm
• Max Vertical Clearance : 361mm ( please check your fitted tire/rim outer diameter )
• Offset: 45mm
• Internal Cable Routing for Brake
• Brake Standard : Flatmount ( 140 ~ 160mm Rotor )

Reference Weight : 890g ( with 200mm Steerer Tube )
